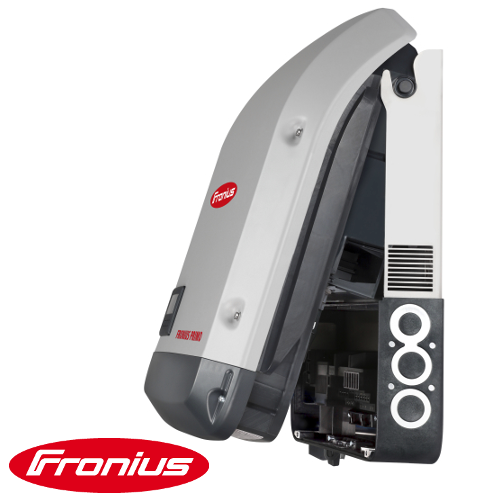

Fronius Primo 7.6-1 TL USA-Made Single Phase Inverter AFCI

Fronius Primo 7.6-1 TL USA-Made Single Phase Inverter AFCI
Fronius Primo 7.6-1 TL USA-Made Single Phase Inverter AFCI - Image 2
Fronius Primo 7.6-1 TL USA-Made Single Phase Inverter AFCI - Image 3

Fronius Primo 7.6-1 7.6kW TL 208 / 240 VAC USA-Made Transformerless Single-Phase Inverter, Dual MPPT, 2 unfused inputs, NEMA 4X, AFCI, DC Disconnect included, 600Vdc, 97% Maximum Efficiency, 10 Year Warranty, Wi-Fi/Ethernet Datamanager, 4,210,061,800

Please call for inventory confirmation: 844-SOLERUSRead more

SKU FRONIUS PRIMO 7.6-1 4-210-061-890 Categories ,
Brand:Fronius

Description



Characteristics
Manufacturer Fronius
Model FRONIUS PRIMO 7.6-1 4,210,061,890
Rated Power Output [W] 7600
Length [mm (in)] 24.7 in
Width [mm (in)] 16.9 in
Depth [mm (in)] 8.1 in
Weight [kg (lb)] 49 lbs
Inverters
Inverter Type Grid-Tie Microinverter
Maximum/Peak Efficiency [%] 97%
Transformer / Transformerless Transformerless
Nom. DC Voltage [V] 660
Max. Input Current [A] 18
MPP voltage range [V] 250-480
Number of MPP Trackers 2
DC Disconnection Type 6 x DC+ 6 DC screw terminals for copper
Nominal AC Power [W] 7600
Max. AC Power [W] 7600
AC voltage range [V] 208/240
AC grid frequency [Hz] 60
Max. output current [A] 36A@208V, 38A@240V
AC Connection Type Screw terminals 12-6 AWG
AC Current Distortion [THD%] <5%
Sleep (Night) Consumption [W] <1 W
Standby Consumption [W] < 1.5 W
NEMA Enclosure Rating NEMA 4X
Cooling Method Variable Speed Fan
Ambient Temperature Range [°C(°F)] -40o F…+131o F (-40o C…+55o C)
Operating Humidity [%] 0-100%
Compliances UL 1741-2010, IEEE 1547-2003, IEEE 1547.1, UL 1699B-2013, ANSI/IEEE C62.41, FCC Part 15 A & B, NEC Article 690, C22. 2 No. 107.1-01 (Sept. 2011)

Brand

Fronius

Fronius is a global technology leader in the field of solar energy generation and storage solutions, as well as welding technology and battery charging technology. With a strong focus on quality, reliability, and sustainability, Fronius offers a range of innovative photovoltaic inverters, energy storage systems, and monitoring tools designed to optimize solar energy production and consumption. As a committed advocate for reducing the world's carbon footprint and promoting the use of renewable energy sources, Fronius continues to develop cutting-edge solar technology that helps customers worldwide meet their energy needs in an environmentally responsible way. With a reputation for exceptional quality, efficiency, and durability, Fronius' solar products are trusted by customers worldwide.

Features

FRONIUS PRIMO 7.6-1 TL USA-Made Single Phase Inverter AFCI

Fronius Primo 7.6-1 7.6kW TL 208 / 240 VAC USA-Made Transformerless Single-Phase Inverter, Dual MPPT, 2 unfused inputs, NEMA 4X, AFCI, DC Disconnect included, 600Vdc, 97% Maximum Efficiency, 10 Year Warranty, Wi-Fi/Ethernet Datamanager, 4,210,061,800
