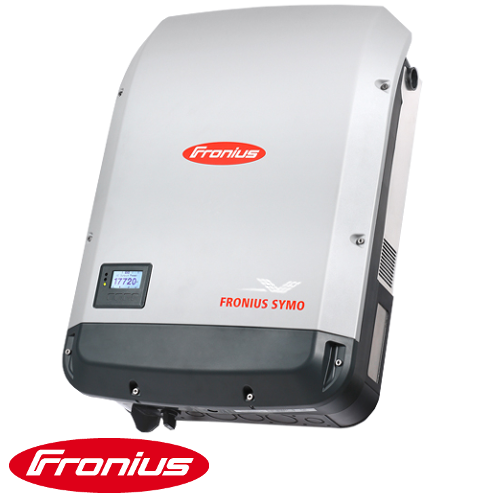

Fronius Symo Lite 10.0-3 208/240V 3-Phase String Inverter (Rule21)

Fronius Symo Lite 10.0-3 208/240V 3-Phase String Inverter (Rule21)
Fronius Symo Lite 10.0-3 208/240V 3-Phase String Inverter (Rule21) - Image 2

Fronius, Symo Lite 10.0 208/240 Grid Tied Inverter, 3-Ph, 10 kW, 208/240VAC, 60Hz, 600VDC, DC Discon, 6 Unfused i/p, 2 MPPT, 10 Yr Warr, Ungrounded, Arc-Fault Protection, UL-1741-SA (Rule-21), 4,210,050,851
Max. input voltage 1,000V (This Lite version doesn’t include WiFi and SunSpec Modbus. In multi-Inverter systems use one Standard as primary with up to 99 Lite units to complete the system)

Please call for inventory confirmation: 844-SOLERUSRead more

SKU SYMO LITE 10.0-3 208/240 LITE 4-210-050-851 Rule21 Categories ,
Brand:Fronius

Description



Characteristics
Manufacturer Fronius
Model Symo Lite 10.0-3 208/240V 4,210,050,851
Rated Power Output [W] 10000
Length [mm (in)] 28.5 inch
Width [mm (in)] 20.1 inch
Depth [mm (in)] 8.9 inch
Weight [kg (lb)] 95.7 lbs
Inverters
Inverter Type Grid-Tie String Inverter
Maximum/Peak Efficiency [%] 98.0%
CEC weighted efficiency [%] 96.5%
Transformer / Transformerless Transformerless
DC Power Rating [W] 10000
Max. Input Voltage [V] 1000
Max. Input Current [A] 51
Number of DC String Inputs (Inlets) 6
Number of MPP Trackers 2
AC Power Rating [W] 9,995
AC grid frequency [Hz] 60
AC Connection Type 208/240V -3Phase
Max. recommended PV power (@ module STC) 8,000-13,000

Brand

Fronius

Fronius is a global technology leader in the field of solar energy generation and storage solutions, as well as welding technology and battery charging technology. With a strong focus on quality, reliability, and sustainability, Fronius offers a range of innovative photovoltaic inverters, energy storage systems, and monitoring tools designed to optimize solar energy production and consumption. As a committed advocate for reducing the world's carbon footprint and promoting the use of renewable energy sources, Fronius continues to develop cutting-edge solar technology that helps customers worldwide meet their energy needs in an environmentally responsible way. With a reputation for exceptional quality, efficiency, and durability, Fronius' solar products are trusted by customers worldwide.

Features

FRONIUS Symo Lite 10.0-3 208/240V 3-Phase String Inverter

Fronius, Symo Lite 10.0 208/240 Grid Tied Inverter, 3-Ph, 10 kW, 208/240VAC, 60Hz, 600VDC, DC Discon, 6 Unfused i/p, 2 MPPT, 10 Yr Warr, Ungrounded, Arc-Fault Protection, UL-1741-SA (Rule-21), 4,210,050,851
Max. input voltage 1,000V (This Lite version doesn’t include WiFi and SunSpec Modbus. In multi-Inverter systems use one Standard as primary with up to 99 Lite units to complete the system)
