The EdgeGrab accommodates PV frame thicknesses of 30–48 mm (if the L-flange is positioned below the stud’s hex nut) and 34–51 mm (if the L-flange is positioned above the stud’s hex nut).
| Characteristics | |
|---|---|
| Manufacturer | S-5! |
| Model | EdgeGrab |
| Length [mm (in)] | 1.89 inch |
| Width [mm (in)] | 3 inch |
| Depth [mm (in)] | 3 inch |
| Weight [kg (lb)] | 3.4 oz |
Note:
S-5! Clamp not included.

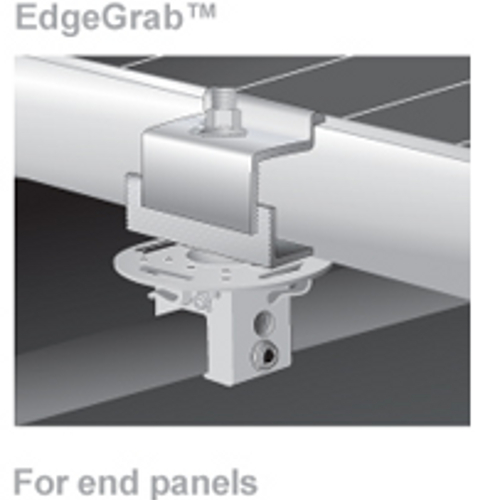

S-5!’s new EdgeGrab™ is specifically designed to be used in conjunction with our patented S-5-PV Kit for solar array end conditions.
The EdgeGrab accommodates PV frame thicknesses of 30–48 mm (if the L-flange is positioned below the stud’s hex nut) and 34–51 mm (if the L-flange is positioned above the stud’s hex nut).
EdgeGrab uses the same S-5-PV Kit base assembly as the universal PV grab and will work on most exposed-fastened and corrugated metal roofs.
