Adding storage with your PV system can be simple. Whether you have an existing grid-tie system or are planning a new project, Sol-Ark and Fortress offer a combined solution that will help you keep the lights on and your home office running during utility interruptions. “Closed-loop” communication and streamlined installation make integrating solar with storage now easier than ever.
Use with or without solar panels as a backup for your critical loads or to offset high TOU utility rates with peak load shaving. Rapid shutdown compatible APSmart devices easily integrate with new solar roof installations with UL 1741 Rule 21 compliance for a complete solar and storage solution that truly is an all-in-one compatible solution.

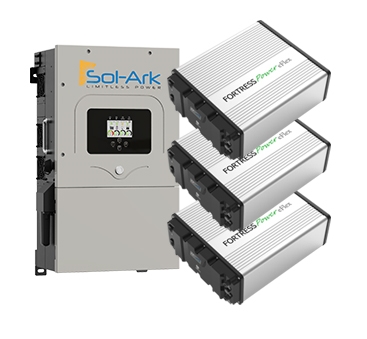

| Components Included | |
|---|---|
| Sol-Ark 12kW All-In-One-Hybrid 48V Inverter | Qnty. 1 |
| Fortress Power 5.4kWh eFlex Lithium Iron Phosphate Battery | Qnty. 3 |
| Fortress Power Battery Wall Mount Enclosure | Qnty. 3 |
| FW500 DC Enclosure | Qnty. 1 |
| Sets of 2/0 Battery to Inverter Red and Black Cables | Qnty. 3 |
Sol-Ark 12K > 12kW 48 Volt All-In-One Solar Generator – Inverter
Manufacturer Part Number: 12K
Parallel Stacking (1-9), Grid Sell, Meter Zero, Time of Use, Smart Load, Peak Shaving, 20kW Peak Power, 9.6kW AC Coupling
Approved for: UL 1741 SA Rule 21, HECO, & Canada PREPA Approved for Puerto Rico 120/240 & 208V
| Specifications | |
|---|---|
| Max allowed PV DC Capacity | 6,500W+6,500W = 13,000W |
| Max PV power delivered to Battery & AC outputs | 12,000 Watts |
| Max DC voltage | 500V@18A, 450V@20A |
| MPPT voltage range | 150-425V |
| MPPT Starting Voltage | 175V |
| Number of MPPT | 2 |
| Nominal AC Output Voltage | 120/240/208V split phase |
| Peak Inverter Efficiency | 97.5% |
| Continuous AC power to Grid (On-Grid) | 9000W 37.5A L-L (255 V)
4800W 40A L-N (120V) |
| Continuous AC power to Loads (Off-Grid) | 8000W 33A L-L (240V )
4800W 40A L-N (120V) |
| Battery Type | Lead-Acid or Li-Ion |
| Nominal DC Input | 48V |
| Capacity | 50 – 9900Ah |
| Grid to Battery Charging Efficiency | 96.0% |
| Dimensions (H x W x D) | 30.0” x 18.30” x 10.00” |
| Weight | 78 lbs |
Helpful Hint with Sol-Ark hybrid inverters: Unlike most string inverters – Sol-Ark hybrid inverter solution will not have a complete power loss for a series string of modules if one of the panels goes bad (stops producing) *** so as long the total voltage of the remaining panel meets or exceeds the min MPPT voltage range of 150VDC.
The eFlex 5.4 kWh 48 Volt Lithium Iron Battery by Fortress Power is a safe, scalable solution for any project’s energy storage needs.
With built-in data storage and Wi-Fi for remote troubleshooting and monitoring. The eFlex is light years ahead of the pack. Additional features, such as the Smart Battery Management System (BMS) includes relay disconnects, closed-loop communication for many hybrid inverters, cell voltage, and temperature monitoring, and cell balancing to maximize reliability and longevity, as well as wifi for internet-of-things compatibility.
The Fortress Power eFlex has the highest round-trip efficiency in the industry at 98% efficiency.
Also, this battery has several mounting options such as wall mount, floor mount and server rack mount to fit your individual project’s needs.
| Product Information | |
|---|---|
| Model | eFlex 5.4 |
| Series | eFlex |
| Manufacturer | Fortress Power |
| Mechanical | |
|---|---|
| Type | Lithium Iron Phosphate (LiFePO4) |
| Dimensions (L x W x H) | 21.5″ x 17.5″ x 7.2″ |
| Weight | 108 lbs |
| Shipping Method | Freight |
| Nominal Voltage | 48V |
| Rated Capacity (20 Hour Rate) | 105 AH |
| Terminal Type | M8 |
Lithium Iron Phosphate Battery
The Fortress Power eFlex is a 5.4 kWh scalable energy storage solution based on safe and energy dense prismatic Lithium-Iron-Phosphate cells. The high amperage, smart Battery Management System (BMS) includes relay disconnects, closed-loop inverter communication, cell voltage and temperature monitoring, and cell balancing to maximize reliability and longevity, as well as wifi for internet-of-things compatibility. The unit can be wall mounted, floor mounted, and server rack mounted.
Features
Documentation – Sol-Ark 12k
Documentation – Fortress eFLEX 5.4
